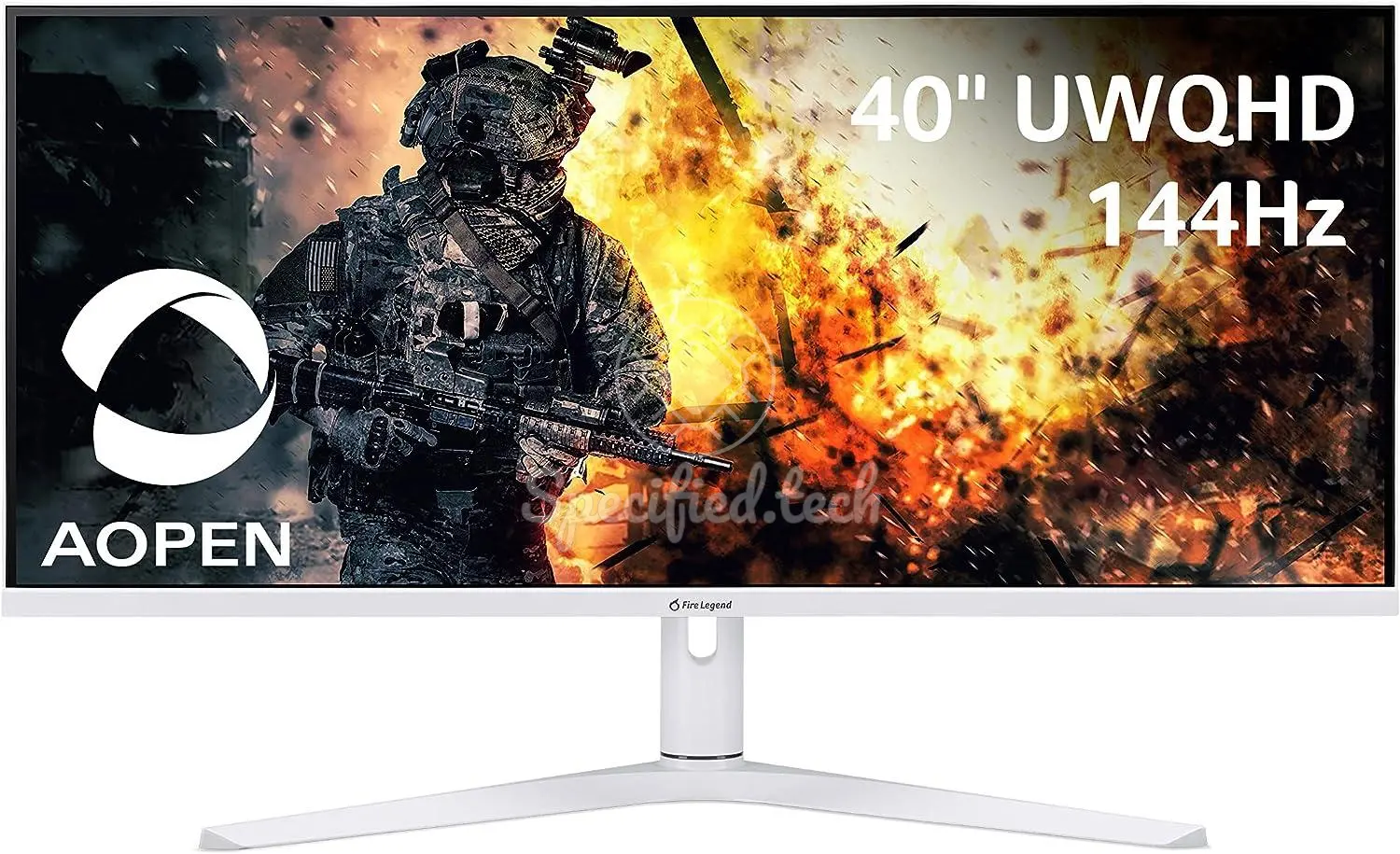

Within this article we will take a closer look at the technical specifications of the 40XV1CU P monitor from AOpen. For this we will talk about all possible categories that could be relevant. To start with, we will look at the display, talk about the design and in the next section we will go into the features of the monitor. Other features such as power consumption, connectors and certifications will follow later in the text.
Display
Games, texts, videos and/or other applications can be displayed on the monitor's 39 inches ( 1.003 m on the diagonal). Let's keep it short and sweet. The monitor has an aspect ratio of 2.389 : 1. The display is a IPS panel. The panel has a resolution of 3440 x 1440 px. The pixel density is 99 ppi. The pixel pitch is 0.255 mm. The continuous possible brightness specified by the manufacturer AOpen is 400 nt. The monitor's panel has a maximum brightness of 600 nt. A high peak brightness enables a particularly clear and well visible display of content on the screen. The panel is illuminated by W-LED. The built-in panel ensures stable color reproduction of the image, even at deviating viewing angles, by means of its 178 ° (horizontal) viewing angle. AOpen promises stable color reproduction moreover within a 178 ° vertical angle. The display panel is Anti-glare/Matte.
Color space
The panel has a bit depth of 8 per color channel, but what does that mean? The number of bits determines how many colors can be encoded for the individual pixels of the display. For an 8-bit panel, for example, this is 256 different colors (2^8 = 256). However, since we usually display three different colors per pixel at the same time, in theory about 16 million (256^3) different colors are possible by mixing the three pixels. A 10-bit panel could even display a billion colors. According to the manufacturer, the coverage of the DCI-P3 color space is 92 %.
Contrast ratio
Contrast ratio is a common measurement used to represent the maximum relative differences in brightness between black and white. It describes the ability of a screen or projector to produce a high-contrast image and is the quotient of the maximum and minimum displayable luminance. The higher the values are away from each other, the stronger the quantitatively seen difference between black and white is set up, which in turn results in an improved image quality. This monitor from AOpen has a static contrast ratio of 1000 : 1 , according to the manufacturer. In contrast to the static contrast ratio, the dynamic contrast ratio changes the brightness of the panel itself in addition to the difference measurement from black to white. In addition to the difference between the brightest and the darkest pixel, the backlight is thus changed. Since the brightness of the panel may not be able to be adjusted exactly to a single pixel, a so-called halo effect is possible. The value of 100000000 : 1 of dynamic contrast ratio for the monitor 40XV1CU P cannot provide any information about the severity of the halo effect here. Therefore, it is more useful to compare the static contrast ratio.
HDR
The monitor supports all HDR modes listed here:
- HDR 600
screen design
Rotate, tilt and swivel
Ports
camera
Loudspeaker
Features
WiFi / Bluetooth
Power consumption
Environment
Packaging
Additional information
