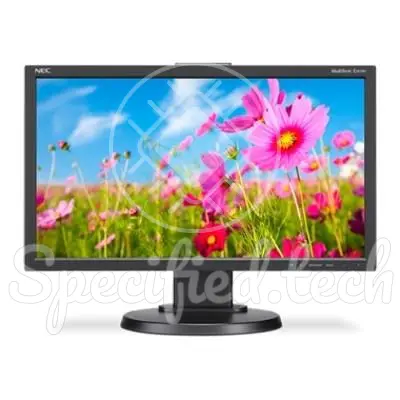

Today we will look at the monitor MultiSync E203Wi from NEC from the year 2015. Within this article, we will first take a closer look at the most important feature of a monitor -the display-, then the design, and in the next section we will go into the features of the monitor. Of course, power consumption, certifications, connectivity and other important details will also be considered.
Display
Texts, videos and/or other applications can be displayed on the 20 inches ( 50.8 cm on the diagonal) of the monitor. The size specification of a monitor refers to the screen diagonal, which is usually specified in inches. It is only comparable to a limited extent for different formats. For example, a conventional 4:3 monitor with the same screen diagonal has 6% less width, but 13% more height and a total of 7% more surface area than a monitor in 16:10 format. Despite the difference in working area, wider monitors are better suited for consuming games or current movies, for example. It is also easier to display several documents simultaneously on widescreen monitors. So, it depends on the current use case whether the aspect ratio of 1.778 : 1 makes sense for the intended use case. Approximately 86.6 % of the front surface of the monitor is taken up by the display, while the remaining part is screen edges that do not allow the image to be displayed. If you want to place several monitors next to each other, it is advisable to choose models with narrow edges. The display is a IPS panel. The panel has a resolution of 1600 x 900 px. The pixel density is 91 ppi. The pixel pitch is 0.277 mm. The continuous possible brightness specified by the manufacturer NEC is 250 nt. The panel is illuminated by W-LED. The built-in panel ensures stable color reproduction of the image, even at deviating viewing angles, by means of its 178 ° (horizontal) viewing angle. NEC promises stable color reproduction moreover within a 178 ° vertical angle. The refresh rate is horizontally seen at the MultiSync E203Wi 31.5 khz to 81.1 khz. Vertically, however, the image renews at a minimum rate of 56 hz up to 76 hz. The minimum response time of the monitor is ms. The average response time of the monitor is about ms. The display panel is Anti-glare/Matte.
Color space
The panel has a bit depth of 8 per color channel, but what does that mean? The number of bits determines how many colors can be encoded for the individual pixels of the display. For an 8-bit panel, for example, this is 256 different colors (2^8 = 256). However, since we usually display three different colors per pixel at the same time, in theory about 16 million (256^3) different colors are possible by mixing the three pixels. A 10-bit panel could even display a billion colors. According to the manufacturer, the coverage of the NTSC 1953 color space is 72 %.
Contrast ratio
Contrast ratio is a common measurement used to represent the maximum relative differences in brightness between black and white. It describes the ability of a screen or projector to produce a high-contrast image and is the quotient of the maximum and minimum displayable luminance. The higher the values are away from each other, the stronger the quantitatively seen difference between black and white is set up, which in turn results in an improved image quality. This monitor from NEC has a static contrast ratio of 1000 : 1 , according to the manufacturer.
HDR
The monitor supports all HDR modes listed here:
screen design
For the installation of the monitor, a space requirement of approximately 27.3 cm in height, 46.6 cm in width and 5.3 cm in depth is to be assumed.
If you want to place the monitor described here on the desk without a wall mount, you should allow for 35 x 46.6 x 21.3 cm (HxWxD) of space. The device weighs 4.9 kg with the stand in place. Without stand, the monitor weighs 2.9 kg. Speaking of weight without a stand and thus wall or table mounts. The monitor supports a Vesa mounting. A height-adjustable stand ensures an improved ergonomic posture during use. The monitor can be moved to a maximum height of 11 cm. This value is always measured from the bottom edge of the screen.
Rotate, tilt and swivel
The monitor from NEC has a pivot function and can thus be rotated using the included stand. A rotation to the left is possible with up to 0 degree. To the right, the monitor can be rotated by 90 degree. The MultiSync E203Wi can be swiveled when mounted on the included stand. Pivoting to the left is possible up to 45 degree. Pivoting to the right is possible up to 45 degree. Thanks to the tilt function of the MultiSync E203Wi monitor, the screen position can be flexibly adjusted to minimize dazzling light sources and ensure optimum visibility. The angle of inclination to the rear is 20. The monitor can be tilted forward by 5 degree.
Ports
The monitor can be connected via 1 VGA ports.
camera
This monitor does not have a camera.
Loudspeaker
Features
- The display/monitor supports Frame Rate Compensation.
WiFi / Bluetooth
Power consumption
The average consumption was given by NEC as 15 w. The maximum power consumption (peak) specified for this monitor is 17 w. In standby mode, the device consumes approximately 0.5 w. When switched off, on the other hand, the monitor consumes only 0.3 w. MultiSync E203Wi supports a static ECO mode, which for example lowers the refresh rate, reduces brightness and disables AI functions to save energy. In ECO mode, the monitor consumes 11 w. The monitor can be operated on a 110v power supply. The monitor can be operated on a 220v power supply. There are 1 amps specified. The power grid has to supply a frequency of 50 hz to 60 hz.
Environment
The maximum height at which the monitor may be operated, according to the manufacturer's specifications, is 2 km. During operation, the ambient temperature must not exceed 35 °C , to ensure full functionality. Below a temperature of 5 °C , the monitor from NEC should again not be used. The humidity must not exceed 80 percent. At least, however, 20 percent humidity. The monitor may be stored at a maximum humidity of 85 percent. The minimum humidity during storage should not fall below 10 percent. The maximum storage temperature should be according to NEC 60 °C. Minimal were given by NEC -10 °c. According to the manufacturer, the monitor may be stored at a maximum height of 12.192 km.
Packaging
Additional information
