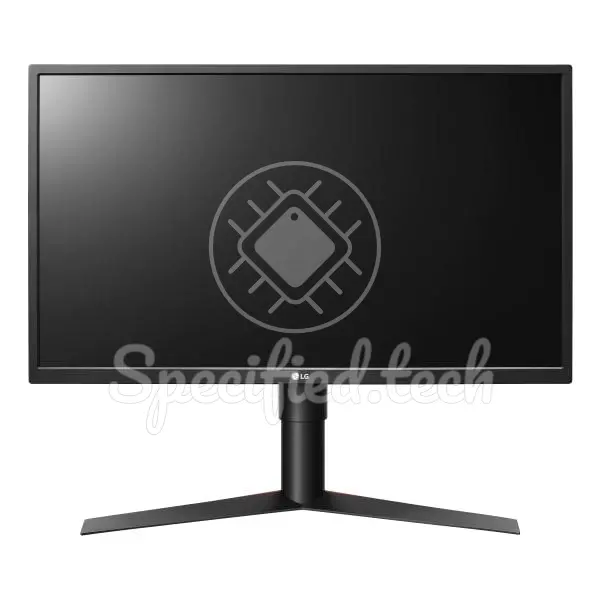

Within this article we will take a closer look at the technical specifications of the 27GK750F monitor from LG. For this we will talk about all possible categories that could be relevant. To start with, we will look at the display, talk about the design and in the next section we will go into the features of the monitor. Other features such as power consumption, connectors and certifications will follow later in the text.
Display
Let's start with the size of the display. It is 27 inches ( 68.4 cm on the diagonal) large and should thus offer enough space for all contents according to LG. While classic CRT monitors were built with a screen ratio of 4:3, this monitor has a ratio of 1.778 : 1 (width to height). In addition to the aspect ratios and the specified screen diagonal, some enthusiasts may also be interested in the ratio between the monitor surface and the actual display. This ratio describes the general relationship between non-display and display. In other words, approximately 86.7 % of the front surface of the monitor consists of the display, while the rest consists of screen edges and cannot display an image. When setting up several monitors next to each other, it is advisable to give preference to models with the narrowest possible edges. The display is a TN panel. The panel has a resolution of 1920 x 1080 px. The pixel density is 81 ppi. The pixel pitch is 0.311 mm. The continuous possible brightness specified by the manufacturer LG is 400 nt. The panel is illuminated by W-LED. The built-in panel ensures stable color reproduction of the image, even at deviating viewing angles, by means of its 170 ° (horizontal) viewing angle. LG promises stable color reproduction moreover within a 160 ° vertical angle. The refresh rate is horizontally seen at the 27GK750F 30 khz to 255 khz. Vertically, however, the image renews at a minimum rate of 48 hz up to 240 hz. The minimum response time of the monitor is ms. The maximum response time of the monitor is ms. The average response time of the monitor is about ms. The display panel is Anti-glare/Matte (3H).
Color space
The panel has a bit depth of 8 per color channel, but what does that mean? The number of bits determines how many colors can be encoded for the individual pixels of the display. For an 8-bit panel, for example, this is 256 different colors (2^8 = 256). However, since we usually display three different colors per pixel at the same time, in theory about 16 million (256^3) different colors are possible by mixing the three pixels. A 10-bit panel could even display a billion colors. According to the manufacturer, the coverage of the NTSC 1953 color space is 72 %.
Contrast ratio
Contrast ratio is a common measurement used to represent the maximum relative differences in brightness between black and white. It describes the ability of a screen or projector to produce a high-contrast image and is the quotient of the maximum and minimum displayable luminance. The higher the values are away from each other, the stronger the quantitatively seen difference between black and white is set up, which in turn results in an improved image quality. This monitor from LG has a static contrast ratio of 1000 : 1 , according to the manufacturer. In contrast to the static contrast ratio, the dynamic contrast ratio changes the brightness of the panel itself in addition to the difference measurement from black to white. In addition to the difference between the brightest and the darkest pixel, the backlight is thus changed. Since the brightness of the panel may not be able to be adjusted exactly to a single pixel, a so-called halo effect is possible. The value of 5000000 : 1 of dynamic contrast ratio for the monitor 27GK750F cannot provide any information about the severity of the halo effect here. Therefore, it is more useful to compare the static contrast ratio.
HDR
The monitor supports all HDR modes listed here:
screen design
LG Specifies the following dimensions for the monitor 27GK750F without stand/feet: 37 cm x 62.5 cm x 4 cm (HxWxD)
The size of the monitor (stand included) is 46.6 x 62.5 x 27.2 cm (HxWxD). If you want to place the monitor on a table or even transport it, you should expect a weight of 6.35 kg with the stand screwed in. According to LG , you can expect a weight of about 4.6 kg without the stand. A height-adjustable stand ensures an improved ergonomic posture during use. The monitor can be moved to a maximum height of 11 cm. This value is always measured from the bottom edge of the screen.
Rotate, tilt and swivel
The monitor from LG has a pivot function and can thus be rotated using the included stand. A rotation to the left is possible with up to 0 degree. To the right, the monitor can be rotated by 90 degree. The 27GK750F can be swiveled when mounted on the included stand. Pivoting to the left is possible up to 20 degree. Pivoting to the right is possible up to 20 degree. Thanks to the tilt function of the 27GK750F monitor, the screen position can be flexibly adjusted to minimize dazzling light sources and ensure optimum visibility. The angle of inclination to the rear is 15. The monitor can be tilted forward by 2 degree.
Ports
camera
This monitor does not have a camera.
Loudspeaker
Features
- Flicker Free: LG 's Flicker Free technology minimizes distracting screen flicker, allowing you to work and/or play longer without restrictions.
- AMD FreeSync: By dynamically synchronizing the refresh rate of the 27GK750F with the frame rate, AMD FreeSync minimizes judder and ensures smooth and enjoyable gameplay.
- The display/monitor supports Frame Rate Compensation.
The monitor from LG supports the reduction of artifacts within dark image areas, which are caused by compression of the played video files, for example. Depending on the manufacturer, this technology is called Black Boost, Dark Boost, Black Stabilizer, Black Equalizer or Black Enhancement.
Panel manufacturer
Many manufacturers of monitors and TVs fall back on third-party manufacturers, such as Samsung or LG, when choosing the actual display (panel). Thus, many of the monitors have the same panel and, conversely, differ only in their design, additional functionalities, the software used and, of course, the price. Two monitors from LG or another manufacturer with an identical panel do not necessarily have to have the same picture quality, but it is usually a first indicator for a purchase decision. The panel used here is originally from AU Optronics and has the model number M270HTN02.3.
WiFi / Bluetooth
Power consumption
The average consumption was given by LG as 30 w. The maximum power consumption (peak) specified for this monitor is 65 w. In standby mode, the device consumes approximately 0.5 w. When switched off, on the other hand, the monitor consumes only 0.3 w. In ECO mode, the monitor consumes 15 w. The monitor can be operated on a 110v power supply. The monitor can be operated on a 220v power supply. There are 3.3 amps specified. The power grid has to supply a frequency of 50 hz to 60 hz.
Environment
The maximum permissible ambient temperature is 40 °C during operation. Below a temperature of 0 °C , the monitor from LG should again not be used. The humidity must not exceed 80 percent. At least, however, 10 percent humidity. The monitor may be stored at a maximum humidity of 85 percent. The minimum humidity during storage should not fall below 5 percent. The maximum storage temperature should be according to LG 60 °C. Minimal were given by LG -20 °C.
Packaging
The monitor is packaged in a cardboard box measuring 50.8 x 79.3 x 19.3 cm (height x width x depth). The box together with the monitor weighs about 8.95 kg.
